● Product description
LONYUNG Healthcare LED Overbed Light is a wall-mounted LED light made for hospitals, senior care facilities, and home healthcare use. It comes in 2ft, 3ft, and 4ft sizes, with four lighting modes — Exam, Reading, Ambient, and Night Light — allowing you to switch between bright light for exams and soft light for rest.Both the up-light and down-light can be dimmed and adjusted between 30K/35K/40K color temperature. The light body is sealed, making it easy to wipe clean and safe to disinfect with alcohol.The housing is powder-coated aluminum, and the light body and base come apart, making installation and servicing easier. End caps and finishes can be customized — white, natural wood , dark wood, black, or silver — avoiding the look of typical medical equipment.It also offers optional USB and Type-C charging ports, and a corded remote control for patients who have trouble reaching the light. The fixture is ETL and DLC Premium certified, with 83+ CRI and up to 115 lm/W efficacy.
| Technical specifications | |
| Input voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power factor | PF>0.95 |
| Efficiency | 115LM/W |
| Color index | Ra>82 |
| switching time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| lifespan | 50.000 Stunden |
| CCT | 3000K-3500K-4000K |
| material | PC |
● Key Features
● Up & Down Lighting
● Adjustable 30K/35K/40K Color Temperature for Both Up and Down Light by DIP Switch
● Individual Lighting Control
● Brightness Switchable
● Integrated Light Body for Easy Cleaning
● USB / Type-C Charging Options
● Customizable Finishes
● Easy Installation & Maintenance
● Product Advantages
●Solid, Substantial Design — A weighted, confident form factor with a powder-coated aluminum body that feels solid and built to last, moving beyond the thin, purely utilitarian look of typical overbed lights.
●Sealed, Hygienic Construction — The luminous light body is a fully integrated, sealed unit that resists dust and insect intrusion. Its smooth, seamless surface wipes clean easily and stands up to alcohol-based disinfection, making it ideal for environments with strict hygiene requirements.
●Split Body-and-Base Design — The light body and mounting base are separate components, simplifying both initial installation and any future servicing — the fixture can be serviced or replaced without disturbing the base mount.
●Customizable Finishes for Interior Integration — The light bar housing and end caps can be finished in a range of customer-specified colors and textures, including natural wood grain and dark walnut, letting the fixture blend into residential-style interiors and contribute to a warmer, more personalized atmosphere rather than reading as clinical equipment.
●Flexible Auxiliary Functions — Optional integrated USB and Type-C charging ports let patients or residents conveniently charge personal devices bedside without extra hardware.
●Accessible Corded Control Handset — For bedridden or mobility-limited users, an optional wired handheld pull-cord/pendant control handset lets them independently turn lights on/off and adjust dimming without needing to reach the fixture itself.
●Configurable Light Distribution — Independent up-light and down-light channels, each with its own dimming steps (via pull chain or switch/remote with 25%/50%/75%/100% presets), plus two CCT-changing switch for on-the-fly color temperature adjustment.
● Applications
● Hospitals & Clinical Care Settings — Exam-level brightness (up to 3450–6900lm) for clinical assessment, paired with gentler reading and ambient settings for patient comfort during recovery.
● Senior Care & Assisted Living Facilities — The corded control handset and integrated night light support residents with limited mobility, offering safe, independent lighting control and gentle illumination for nighttime wakings.
● Residential Bedrooms & Home Healthcare — Customizable wood-tone and color finishes let the fixture double as a home furnishing rather than medical equipment, suited for home hospital beds or general bedroom use.
● Installation
● Risk Of Electrical Shock: Disconnect Power Before Installing Or Servicing Product.
● Installation should be performed by Licensed / Qualifified Electricians Only.
● Please use it under correct input power range.
● Do not use in the outdoor environment.
● If the product does not operate properly, check the wire connection after the power cut off.

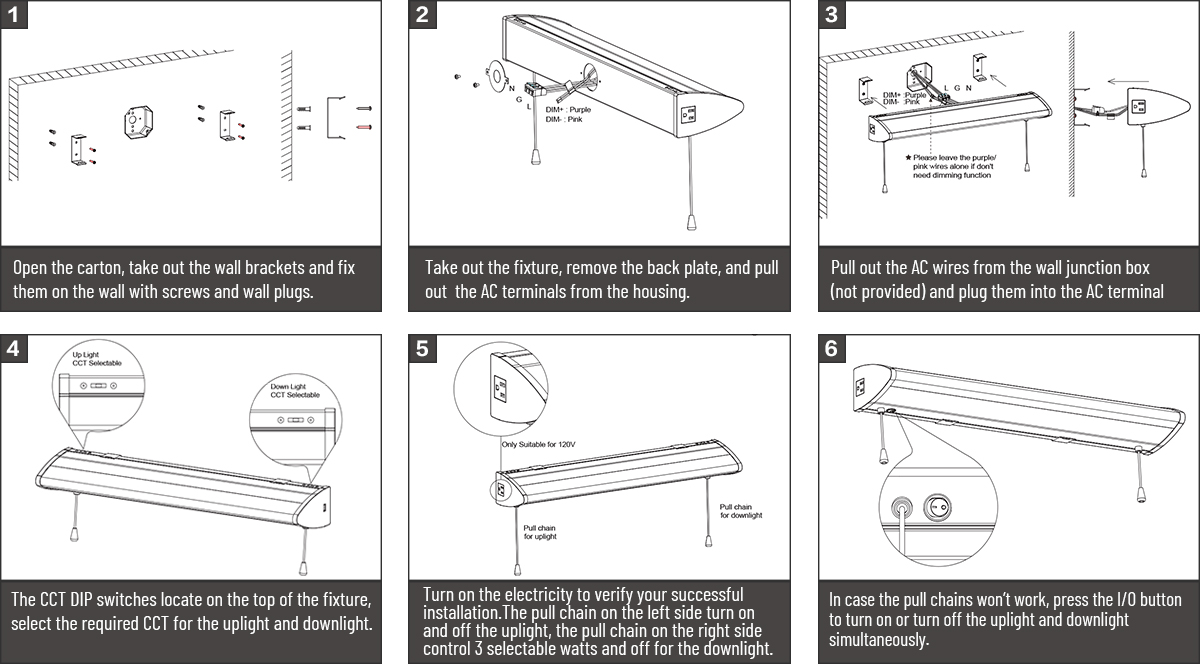

● Follow the diagram below for proper installation.
● FAQs
1. Is the color temperature adjustable?
Yes. Both the up light and down light support selectable 3000K.3500K,4000K color temperatures，allowing the lighting to be adjusted for different care and comfort requirements.
2. Can the up light and down light be controlled independently?
Yes. Two control options are available: two separate pull chains, with each chain controlling the up or down light respectively, or an optional hand-held controller, which provides individual ON/OFF control for up/down lights and 4-level dimming (25% / 50% / 75% / 100%)
3. Can the LED Overbed Light be customized for the different healthcare projects?
Yes. LONYUNG Overbed Light offers several customization options, including finish colors,end-cap finishes,control method, and USB-A/USB-C charing ports. Available finishes include white,black,natural wood,dark wood, and silver.
4. Is the LED Overbed Light easy to clean and disinfect?
Yes.The integrated and sealed light body has a smooth surface that is easy to wipe clean and suitable for alcohol-based disinfection,making it well suited for hospitals,senior care facilities,and other healthcare environments.
5. Is installation complicated? Can it cover standard junction boxes?
The fixture body mounts directly over a standard 4" junction box, making both new installations and retrofits quick.What's more，the fixture supports universal input voltages including 120–277V and 120–347V, making it compliant with commercial and healthcare electrical standards across North America.
